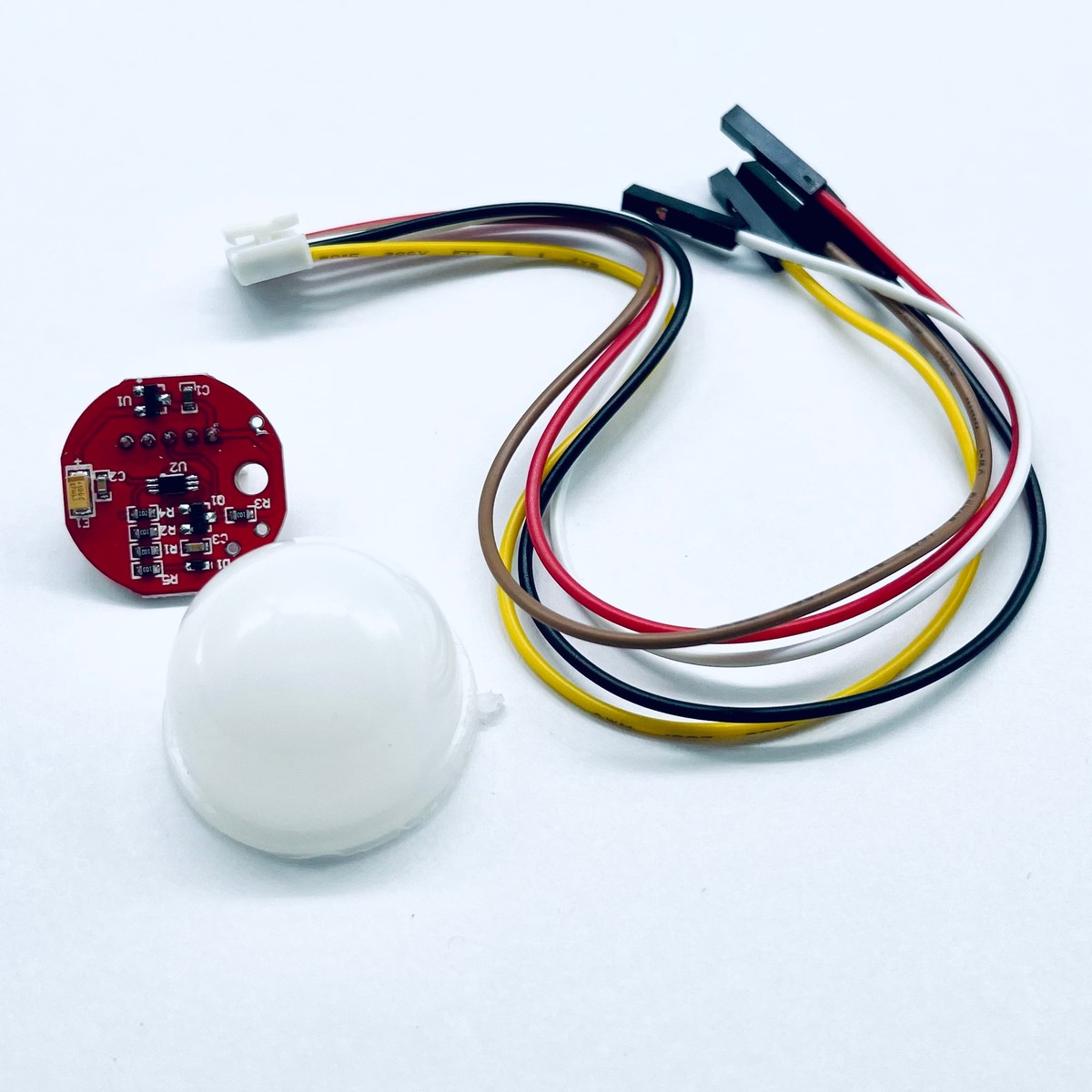

Digital Light Intensity Sensor BH1750

Description

This is a BH1750 light intensity sensor breakout board with a 16 bit AD converter built-in which can directly output a digital signal, there is no need for complicated calculations. This is a more acurate and easier to use version of the simple LDR which only outputs a voltage that needs to be calculated in order to obtain meaningful data. With the BH1750 Light Sensor intensity can be directly measured by the luxmeter, without needing to make calculations. The data which is output by this sensor is directly output in Lux (Lx). When objects which are lighted in homogeneous get the 1 lx luminous flux in one square meter ,their light intensity is 1lx. Sometimes to take good advantage of the illuminant, you can add a reflector to the illuminant.So that there will be more luminous flux in some directions and it can increase the ilumination of the target surface.

• Chip: BH1750FVI
• Power Supply: 3.3V- 5V
• Light Range0 – 65535 lx(Lux)
• Sensor Built-in: 16 bit AD converter
• Size(L x W): Approx. 3.2cm x 1.5cm
• Direct digital output, bypassing the complex calculation, bypassing the calibration
• Close to the spectral characteristics of visual
• Widely used to 1-lux high precision measurement
• Standard NXP IIC communication
• BH1750FVI Datasheet

Specifications

Resources

Datasheet

Library

Sample Code

Tutorial
