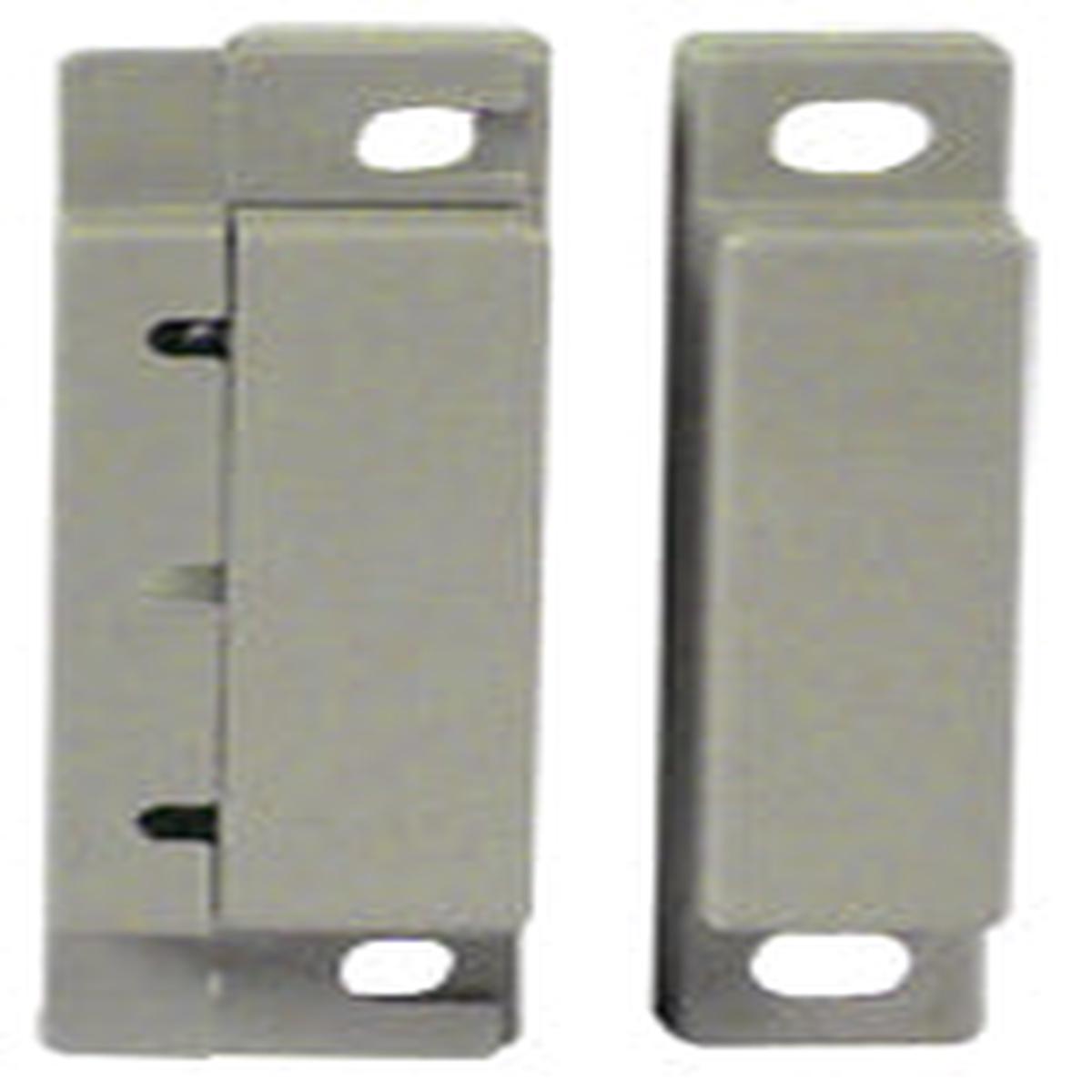

Door Contact Sensor

Name: Door Contact Sensor
SKU: VVLD564114082476
Availability: InStock

Original price was: $8.84.Current price is: $7.07.

SKU: VVLD564114082476 Category: SENSOR

Product Datasheet

Monitors access with a magnetic bridge sensor, which responds to any magnetic material (no special inserts necessary).
Can also be used for monitoring side wall and covers.
Includes mounting hardware.
For normally closed circuit connection.
Screw terminal. Connect to digital input on an E-MINI-LXO and E-MICRO. To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
Wide actuating gap, approximately 1.2″.
Dimensions WxDxH (in): 0.6×0.7×2.5 (switch), 0.6×0.5×2.5 (magnet).
Operating temperature: 32 to 158 F (0 to 70 C).
Regulatory approvals: CE, UL, RoHS
