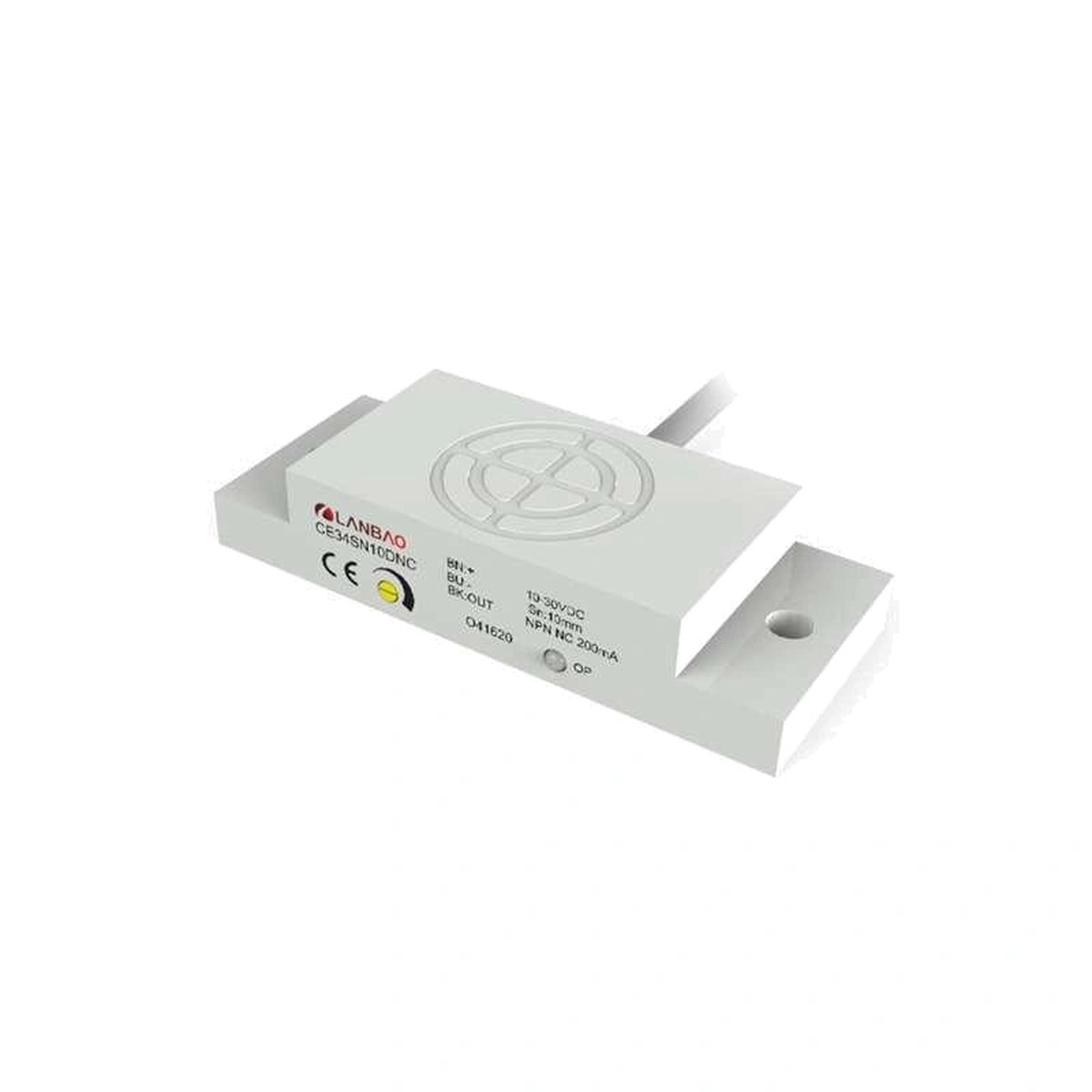

Lanbao CE34 10mm Square Capacitive Proximity Sensor

Lanbao CE34 10mm Square Capacitive Proximity Sensor

Lanbao CE34 Series is a compact square capacitive proximity sensor for DC automation systems that need non-contact detection in a thin 20 x 50 x 10mm plastic housing. It provides a 10mm adjustable sensing distance, non-flush mounting, PBT housing, IP67 protection, and 2m PVC cable connection.

This listing covers CE34SN10 DC variants. Store variants include NPN or PNP output with normally-open or normally-closed switching logic, making the sensor easy to match with PLC inputs, compact controllers, counters, and industrial I/O modules.

For related Lanbao capacitive sensors, compare the Lanbao CR12S Plastic Series, Lanbao CR18S Plastic Series, and Lanbao CR30S Plastic Series. For high-temperature material-level detection, see the Lanbao CE53S High Temperature Series.

Technical Specifications

Brand	Lanbao
Series	CE34 Series
Sensor Type	Square capacitive proximity sensor
Product Series Reference	Standard function series
Body Shape	Plastic square shape
Mounting	Non-flush
Rated Sensing Distance	10mm adjustable
Assured Operating Distance	0-8mm reference
Dimensions	20 x 50 x 10mm
Output Type	NPN or PNP, depending on selected variant
Output Logic	Normally open or normally closed, depending on selected variant
Power Supply	10-30V DC
Standard Target	Fe34 x 34 x 1t reference
Switch-Point Offset	<=+/-20% of rated sensing distance reference
Hysteresis Range	3-20% of rated sensing distance reference
Repeat Error	<=3% reference
Load Current Reference	<=200mA
Residual Voltage Reference	<=2.5V
Current Consumption Reference	<=15mA
Circuit Protection	Reverse-polarity protection reference
Output Indicator	Yellow LED
Ambient Temperature	-25C to 70C
Ambient Humidity	35-95%RH
Switching Frequency	50Hz
Impulse Resistance	1000V AC 50/60Hz for 60s reference
Insulation Resistance	>=50MOhm at 500V DC reference
Vibration Resistance	10-50Hz, 1.5mm reference
Protection Rating	IP67
Housing Material	PBT
Connection	2m PVC cable
Available Store SKUs	CE34SN10DNO, CE34SN10DNC, CE34SN10DPO, CE34SN10DPC

Integration Notes & Hardware Guidance

• Output selection: Choose CE34SN10DNO or CE34SN10DNC for NPN wiring, and CE34SN10DPO or CE34SN10DPC for PNP wiring.
• Signal logic: Use normally-open variants when the input should turn on after target detection, or normally-closed variants when the input should turn off after target detection.
• Mounting setup: The CE34 is a non-flush sensor, so leave adequate clearance around the sensing face and avoid surrounding conductive or high-dielectric material that may affect triggering.
• Adjustment workflow: Set the multi-turn adjustment after installation, then verify detection with the actual target material, target size, and working distance.
• Cable planning: This series uses a fixed 2m PVC cable, so confirm routing distance, bend radius, and controller terminal location before mounting.

Packing List

Item	Qty	Notes
Lanbao CE34 capacitive proximity sensor	1	Selected NPN or PNP, normally-open or normally-closed variant
Integrated 2m PVC cable	1	Factory-attached cable connection
Product label and packaging	1	Packaging may vary by shipment batch
Documentation reference	1	Digital or printed documentation may vary by shipment batch

FAQ

What sensing distance does the CE34 Series provide?

The CE34 Series provides a 10mm adjustable rated sensing distance, with a 0-8mm assured operating distance reference.

Is the CE34 a flush or non-flush sensor?

It is a non-flush square capacitive sensor, so installation clearance around the sensing face is important for stable switching.

How do I choose between NPN and PNP?

Choose the output type required by your PLC, controller, or I/O module. NPN and PNP wiring are not interchangeable unless the receiving device supports both input standards.

What is the difference between NO and NC variants?

Normally-open variants switch on when a target is detected, while normally-closed variants switch off when a target is detected.

Can this sensor detect non-metal targets?

Yes. As a capacitive proximity sensor, it can detect many solid, liquid, or granular targets, but the effective distance depends on material properties and installation conditions.
