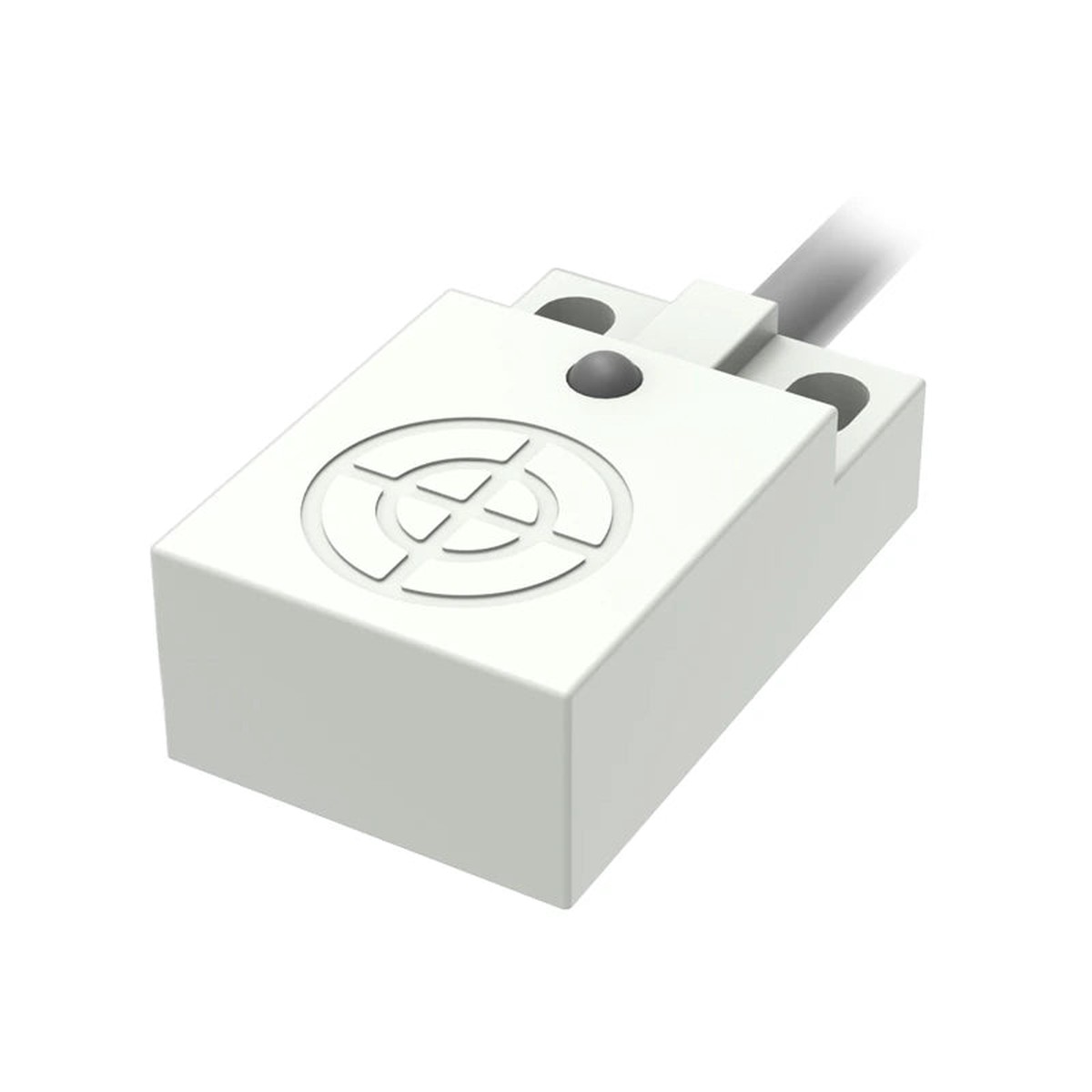

Lanbao LE10 5/8mm DC Rectangular Inductive Sensor

Lanbao LE10 5/8mm DC Rectangular Inductive Sensor

Lanbao LE10 Series is a compact rectangular inductive proximity sensor for non-contact metal detection in space-limited automation equipment. Its small block-style housing, 10-30V DC supply, and NPN / PNP output options make it suitable for machine-position feedback, metal target detection, and compact equipment integration.

This listing covers LE10SF05 and LE10SN08 variants with flush 5mm or non-flush 8mm sensing distances. Normally-open and normally-closed logic options are available in both NPN and PNP output types, helping the sensor match different PLC, controller, and I/O module input requirements.

For related Lanbao sensors, compare the Lanbao LE40SZ Square Inductive Sensor, Lanbao LR08-DC 3-Wire Inductive Sensor, and Lanbao LR12X-DC 3/4-Wire Inductive Sensor. For photoelectric detection options, see the Lanbao PSE Photoelectric Sensor Family.

Technical Specifications

Brand	Lanbao
Series	LE10 Series
Sensor Type	Rectangular inductive proximity sensor
Housing Style	Compact rectangular block housing
Housing Size Reference	10 x 18 x 30mm reference size
Housing Material	PBT reference housing
Installation Options	Flush 5mm or non-flush 8mm, depending on selected variant
Rated Sensing Distance	5mm for LE10SF05 variants; 8mm for LE10SN08 variants
Assured Operating Distance	0-4mm for 5mm variants; 0-6.4mm for 8mm variants
Power Supply	10-30V DC
Output Type	DC 3-wire NPN or PNP
Output Logic	Normally open or normally closed, depending on selected variant
Standard Target	Fe 18 x 18 x 1t reference for 5mm variants; Fe 24 x 24 x 1t reference for 8mm variants
Switching Frequency	1000Hz / 800Hz reference, depending on selected variant
Load Current Reference	<=100mA
Residual Voltage Reference	<=2.5V
Current Consumption	<=10mA reference
Output Indicator	Red LED
Operating Temperature	-25C to 70C
Protection Rating	IP67 reference
Connection	2m PVC cable reference
Available Variants	LE10SF05DNO, LE10SF05DNC, LE10SF05DPO, LE10SF05DPC, LE10SN08DNO, LE10SN08DNC, LE10SN08DPO, LE10SN08DPC

Integration Notes & Hardware Guidance

• Output selection: Choose NPN or PNP according to the input type of your PLC, controller, counter, or I/O module.
• Logic selection: Choose normally open or normally closed based on the required signal state when a metal target is detected.
• Sensing-distance selection: Choose 5mm flush variants for shielded installation or 8mm non-flush variants when additional sensing distance is needed.
• Mounting condition: Keep the metal target within the assured operating range and leave suitable clearance around non-flush versions to avoid false switching.
• Wiring check: Confirm supply voltage, output polarity, and cable wiring before applying power to the sensor.

Packing List

Item	Qty	Notes
Lanbao LE10 rectangular inductive proximity sensor	1	Selected sensing distance, NPN / PNP output, and NO / NC logic variant
Original product packaging	1	Packaging may vary by shipment batch

FAQ

What does the Lanbao LE10 sensor detect?

It detects metal targets using inductive proximity sensing, without physical contact with the target.

What sensing distances are available?

This listing includes 5mm flush variants and 8mm non-flush variants. Select the version that matches your mounting condition and detection distance.

How do I choose NPN or PNP?

Match the output type to your controller input. Choose NPN or PNP according to the wiring standard used by your PLC, controller, or I/O module.

What is the difference between NO and NC?

NO means the output switches on when a metal target is detected. NC means the output switches off when a metal target is detected.

Is this sensor suitable for compact installations?

Yes. The LE10 series uses a compact rectangular housing, making it useful where a round threaded sensor is difficult to install.
