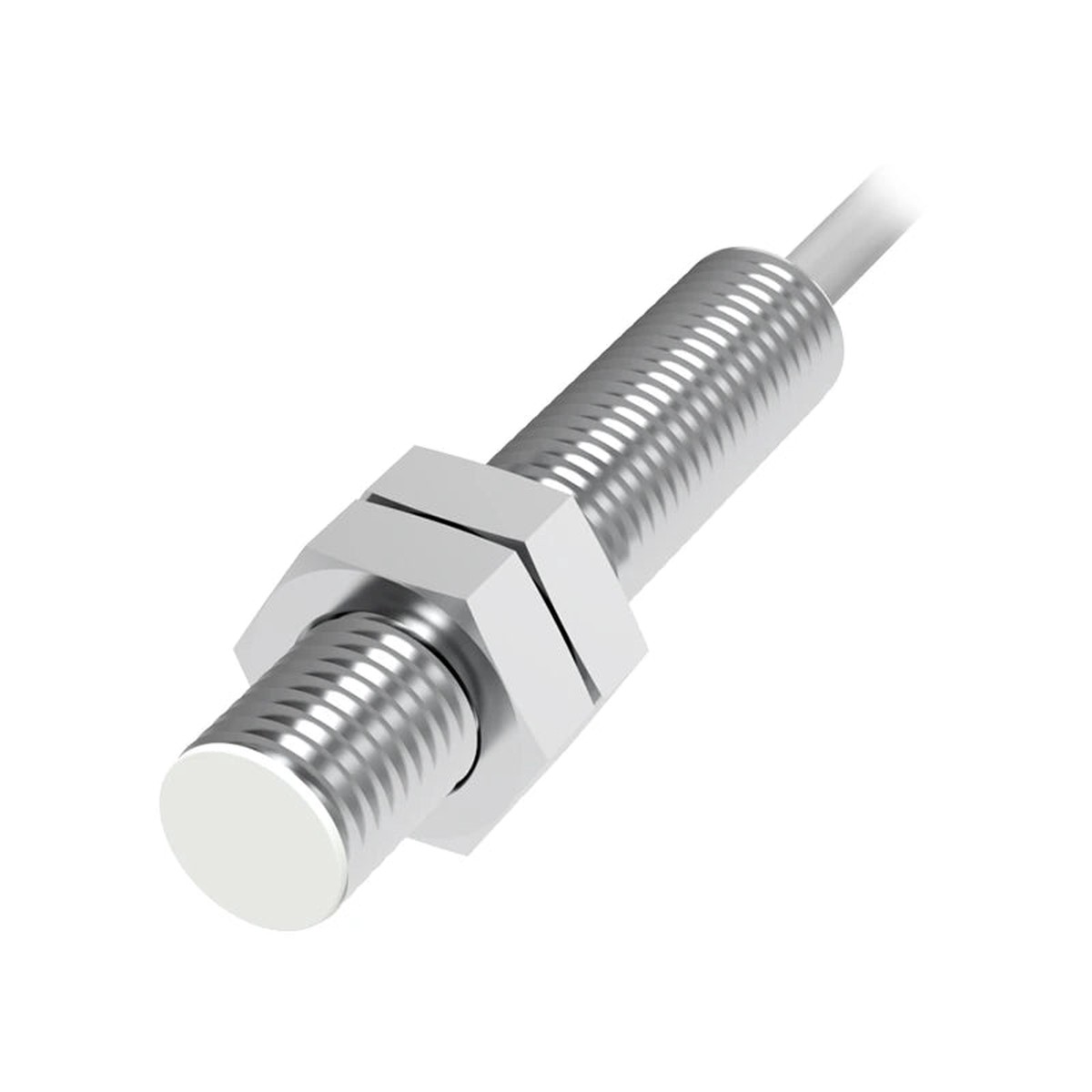

Lanbao LR08-DC 1.5/2mm 2-Wire Inductive Sensor

Lanbao LR08-DC 1.5/2mm 2-Wire Inductive Sensor

Lanbao LR08-DC 2-Wire Series is an M8 cylindrical inductive proximity sensor for non-contact metal detection in automation equipment, fixtures, and compact machine-control systems. It provides a simple DC 2-wire output loop while offering standard 1.5mm flush and 2mm non-flush sensing variants.

This listing covers LR08BF15 and LR08BN02 2-wire variants with normally-open or normally-closed output logic. Cable-output, E1 M8 connector, and E2 M12 connector versions are available, making it easier to match the sensor to fixed wiring, compact connector installations, or service-friendly replacement needs.

For related Lanbao inductive sensors, compare the Lanbao LR08-DC 3-Wire Inductive Sensor, Lanbao LR6.5Q-DC 3-Wire Inductive Sensor, and Lanbao LR12X-DC 3/4-Wire Inductive Sensor. For photoelectric detection options, see the Lanbao PSE Photoelectric Sensor Family.

Technical Specifications

Brand	Lanbao
Series	LR08-DC 2-Wire Series
Sensor Type	Inductive proximity sensor
Housing Size	M8 cylindrical housing
Housing Material	Stainless steel / nickel-copper alloy reference housing
Installation Options	Flush 1.5mm or non-flush 2mm, depending on selected variant
Rated Sensing Distance	1.5mm for LR08BF15 variants; 2mm for LR08BN02 variants
Assured Operating Distance	0-1.2mm for 1.5mm variants; 0-1.6mm for 2mm variants
Power Supply	10-30V DC
Output Type	DC 2-wire
Output Logic	Normally open or normally closed, depending on selected variant
Standard Target	Fe 8 x 8 x 1t reference
Switching Frequency	1000Hz / 800Hz reference, depending on selected variant
Load Current Reference	<=100mA
Residual Voltage Reference	<=6V
Leakage Current Reference	<=1mA
Output Indicator	Yellow LED
Operating Temperature	-25C to 70C
Protection Rating	IP67 reference
Connection Options	2m PVC cable, E1 M8 connector, or E2 M12 connector version, depending on selected variant
Available Variants	LR08BF15DLO, LR08BF15DLC, LR08BN02DLO, LR08BN02DLC, plus matching E1 and E2 connector versions

Integration Notes & Hardware Guidance

• Two-wire wiring: Use the sensor with a compatible DC 2-wire input loop and confirm that the controller input can tolerate residual voltage and leakage current.
• Sensing-distance selection: Choose 1.5mm flush variants for compact mounting or 2mm non-flush variants when extra sensing distance and installation clearance are required.
• Logic selection: Choose DLO for normally-open output or DLC for normally-closed output according to the required signal state.
• Mounting condition: Keep the target within the assured operating range and leave suitable clearance around non-flush versions to avoid false switching.
• Connection choice: Select cable, E1 M8, or E2 M12 variants based on cabinet layout, replacement speed, and connector standard.

Packing List

Item	Qty	Notes
Lanbao LR08-DC 2-wire inductive proximity sensor	1	Selected sensing distance, NO / NC logic, and cable / E1 / E2 connection variant
Original product packaging	1	Packaging may vary by shipment batch

FAQ

What does the LR08-DC 2-wire sensor detect?

It detects metal targets using inductive proximity sensing, without physical contact with the target.

What sensing distances are available?

This listing includes 1.5mm flush variants and 2mm non-flush variants. Select the version that matches your mounting space and detection distance.

What is the difference between DLO and DLC?

DLO indicates normally-open output, while DLC indicates normally-closed output. Choose the logic that matches your controller signal requirement.

Is this the same as a 3-wire NPN or PNP sensor?

No. This is a DC 2-wire sensor. Check that your controller input is compatible with 2-wire sensor residual voltage and leakage current before installation.

What is the difference between cable, E1, and E2 variants?

Cable variants use a fixed 2m PVC cable, E1 variants use an M8 connector, and E2 variants use an M12 connector.
