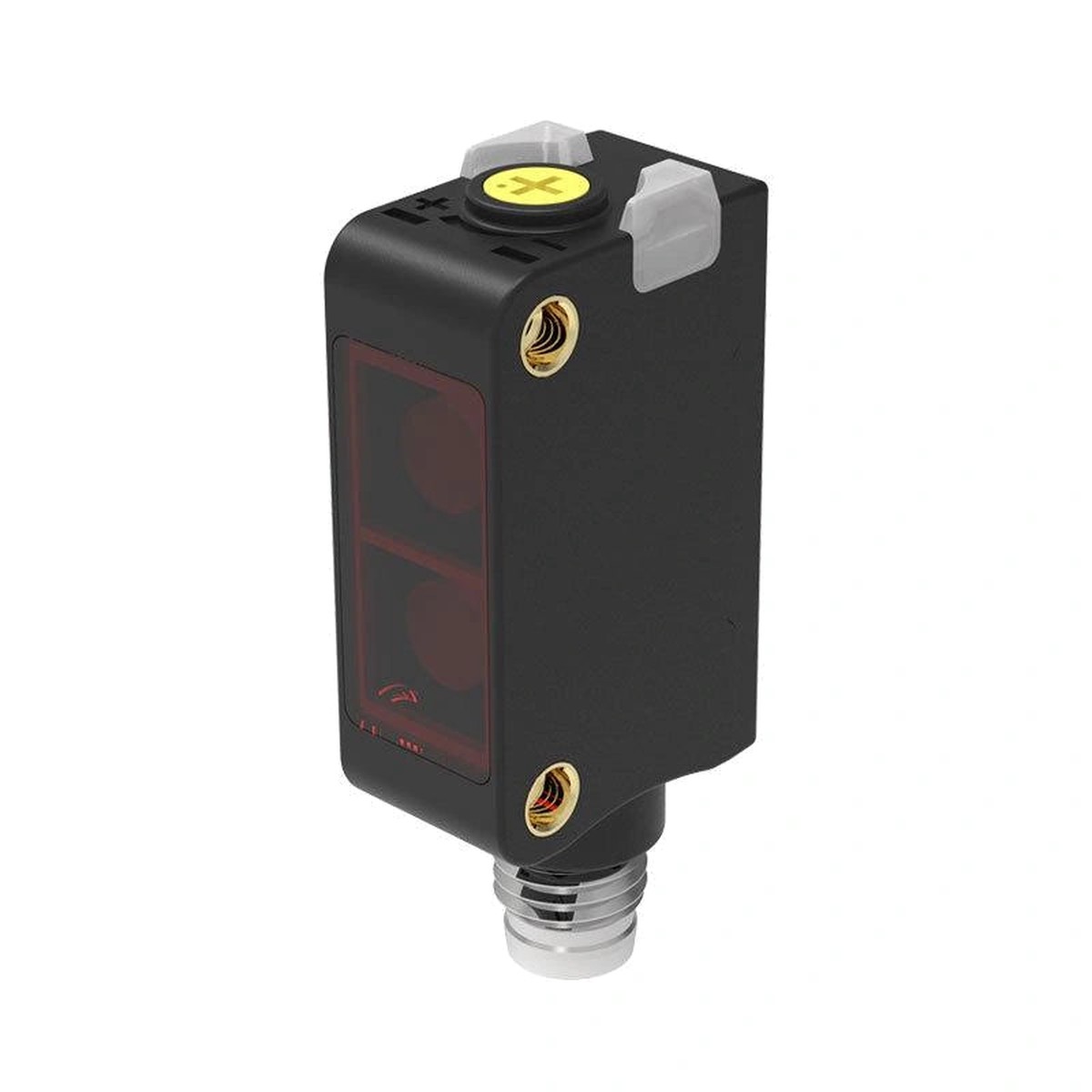

Lanbao PSE-YC35 DC Background Suppression Sensor

Lanbao PSE-YC35 DC Background Suppression Sensor

Lanbao PSE-YC35 Series is a compact little-square background-suppression photoelectric sensor for DC automation systems. It is designed for 0.2-35cm adjustable sensing, helping detect the target object while reducing unwanted switching from background surfaces behind the set detection point.

This listing covers PSE-YC35DNBR, PSE-YC35DPBR, and their E3 M8 connector versions. The series uses a red 630nm light source, 5-turn distance adjustment, NPN or PNP output, NO/NC output logic, 10-30V DC supply, IP67 protection, and either a 2m PVC cable or M8 4-pin connector depending on the selected variant.

For related Lanbao photoelectric sensors, compare the Lanbao PSE-YC25 Background Suppression Series, Lanbao PSE Little Square Sensor Family, Lanbao PSE-PM3 DC Polarized Series, and Lanbao PR18-YC Background Suppression Series.

Technical Specifications

Brand	Lanbao
Series	PSE-YC35 Series
Sensor Type	Little-square background-suppression photoelectric sensor
Detection Type	Background suppression
Detection Distance	0.2-35cm reference
Rated Distance Reference	35cm
Standard Detection Target	White card, 20 x 20cm, 90% reflectivity reference
Distance Adjustment	5-turn knob adjustment
NO/NC Switch Reference	White wire connected to positive or floating for NO; white wire connected to negative for NC
Light Source	Red light, 630nm
Light Spot Size	18mm diameter at 35cm reference
Output Type	NPN for DNBR variants; PNP for DPBR variants
Output Logic	NO/NC selectable
Supply Voltage	10-30V DC
Return Difference	<5% reference
Consumption Current	<=20mA
Load Current	<=100mA
Voltage Drop	<1V
Response Time	3.5ms standard reference; high-response G variants are not included in this listing
Circuit Protection	Short-circuit, reverse-polarity, overload, and zener protection reference
Indicators	Green power indicator; yellow output, overload, or short-circuit indication reference
Ambient Light Immunity	Sunlight interference <=10000Lux; incandescent light interference <=3000Lux reference
Operating Temperature	-25C to +55C
Storage Temperature	-25C to +70C
Protection Rating	IP67
Certification Reference	CE reference
Housing Material	PC + ABS housing
Lens Material	PMMA
Weight Reference	Cable version about 50g; connector version about 10g
Connection Options	2m PVC cable or M8 4-pin connector, depending on selected variant
Accessory Reference	M3 screws, ZJP-8 mounting bracket, and operation manual reference; actual package may vary by shipment batch
Available Store SKUs	PSE-YC35DNBR, PSE-YC35DPBR, PSE-YC35DNBR-E3, and PSE-YC35DPBR-E3

Integration Notes & Hardware Guidance

• Distance setup: Use the 5-turn knob to set the sensing distance with the real target and nearby background in place.
• Output selection: Choose DNBR variants for NPN output or DPBR variants for PNP output, matching the controller input type.
• Logic selection: Confirm NO/NC behavior through the white-wire wiring reference before final commissioning.
• Connection selection: Choose fixed 2m cable versions for direct wiring or E3 M8 connector versions when detachable wiring and easier replacement are preferred.
• Target testing: Background suppression reduces rear-object interference, but target color, reflectivity, angle, and ambient light should still be verified during setup.

Packing List

Item	Qty	Notes
Lanbao PSE-YC35 background-suppression photoelectric sensor	1	Selected NPN or PNP, cable or E3 connector variant
Integrated cable or M8 connector body	1	Connection type depends on selected variant
Mounting accessory reference	1 set	Accessory contents may vary by shipment batch
Product label and packaging	1	Packaging may vary by shipment batch
Documentation reference	1	Digital or printed documentation may vary by shipment batch

FAQ

What detection mode does the PSE-YC35 Series use?

It uses background suppression, which helps reduce unwanted switching from objects behind the set detection point.

What sensing distance does this series support?

The official detection-distance reference is 0.2-35cm with 5-turn knob adjustment.

How do I choose between DNBR and DPBR variants?

Choose DNBR variants for NPN output or DPBR variants for PNP output, depending on your controller input wiring.

How do I choose between cable and E3 versions?

Cable versions use a fixed 2m PVC cable, while E3 versions use an M8 4-pin connector for detachable wiring and easier sensor replacement.

Does this sensor require a reflector?

No. PSE-YC35 uses background suppression and does not require a reflector.
