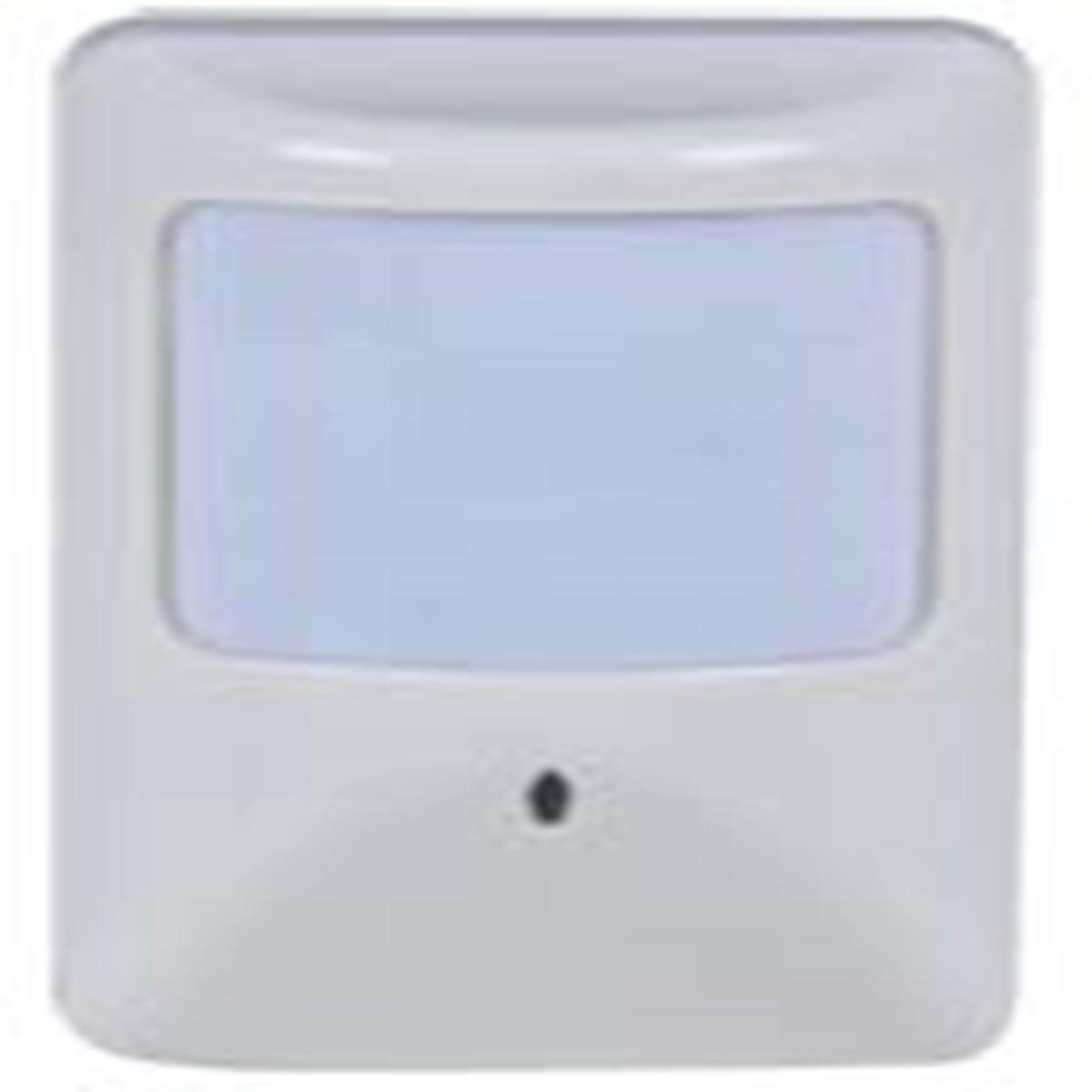

Low-Cost Infrared Motion Sensor

Name: Low-Cost Infrared Motion Sensor
SKU: VVLD564114089214
Availability: InStock

Original price was: $76.36.Current price is: $38.18.

SKU: VVLD564114089214 Category: SENSOR

Product Datasheet

Registers movement in area covered: 39×39 ft (12×12 m), 110 wide.
Condition display via LED.
Intelligent logic control prevents false alarms.
Wall mount or hang in a corner.
Good RFI protection.
Screw terminal.
Connect to digital input or RJ45 sensor ports on an ENVIROMUX system.
To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal. To connect to the RJ45 inputs, use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
Current consumption: 20mA @ 12VDC.
Powered by the E-2D/5D/16D.
Operating temperature: 14 to 122 F (-10 to 50 C)
Includes mounting bracket for installing the sensor to a ceiling or wall.
