Magnetic contact switch (door sensor)

Original price was: $14.00.Current price is: $9.00.

SKU: UWGM435801 Category:

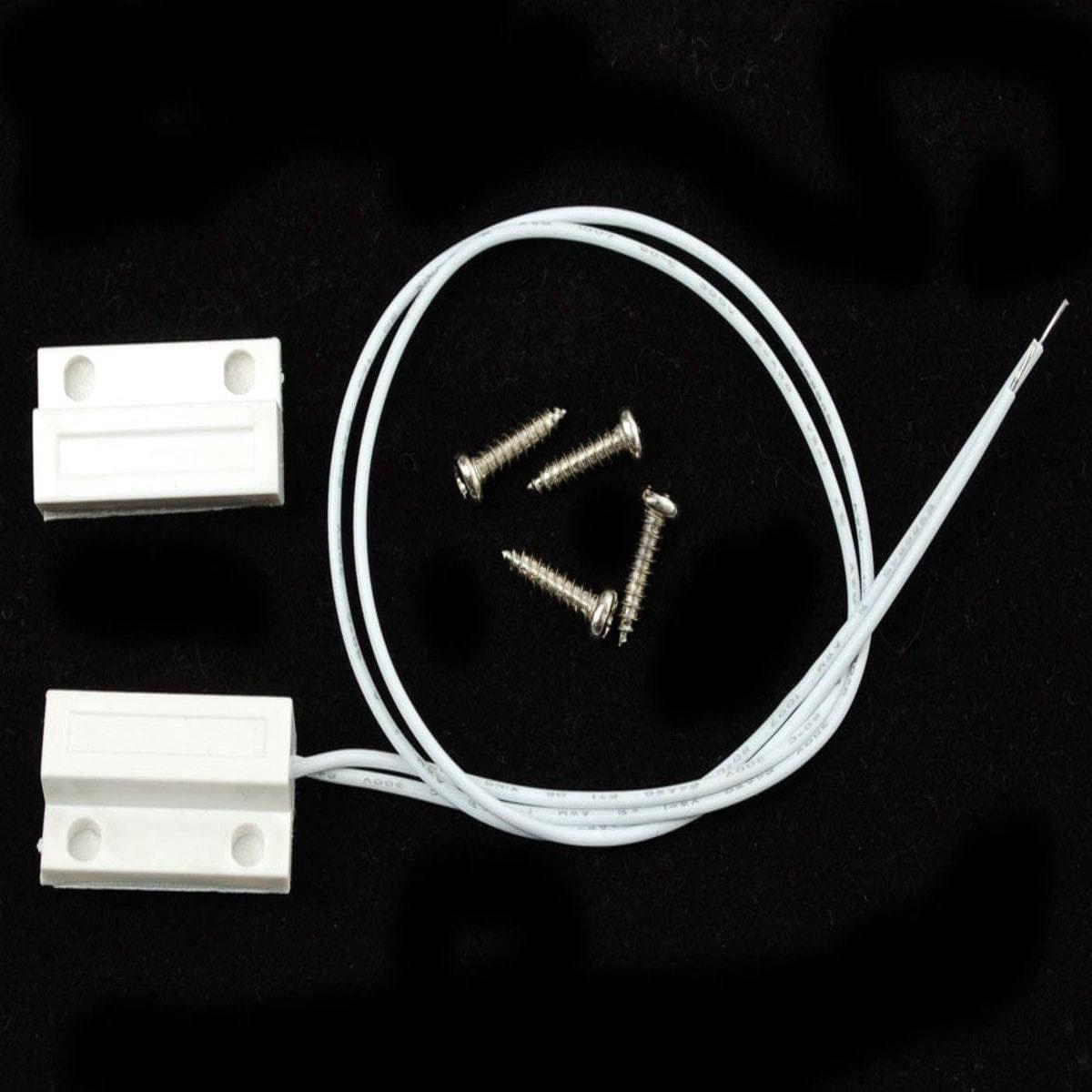

This sensor is essentially a reed switch, encased in an ABS plastic shell.

Normally the reed is ‘open’ (no connection between the two wires). The other half is a magnet. When the magnet is less than 13mm (0.5″) away, the reed switch closes. They’re often used to detect when a door or drawer is open, which is why they have mounting tabs and screws. You can also pick up some double-sided foam tape from a hardware store to mount these, that works well without needing screws.

Technical Details

  • Normally open reed switch
  • ABS enclosure
  • Rated current: 100 mA max
  • Rated voltage: 200 VDC max
  • Distance: 15mm max

Dimensions:

  • Box size (each side): 29mm x 14mm x 9mm / 1.1″ x 0.6″ x 0.4″
  • Cable Length: 305mm 12mm / 12″ 0.5″
  • Weight (per side): 5.4g
