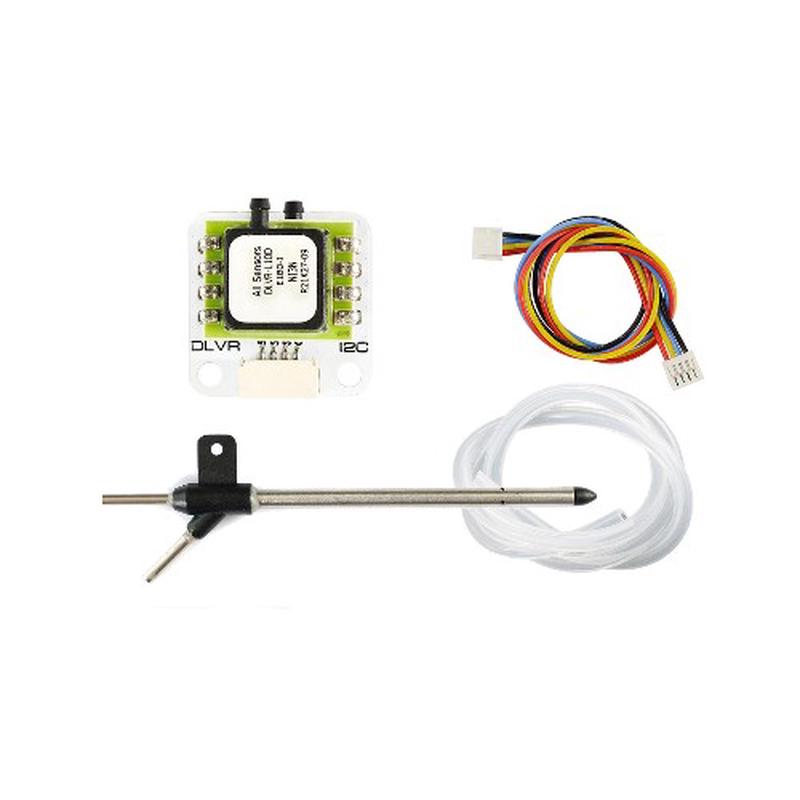

Matek Digital Airspeed Sensor AS-DLVR-I2C

Sale!

Matek Digital Airspeed Sensor AS-DLVR-I2C

Original price was: $70.49.Current price is: $35.25.

SKU: BNF88945381 Category: SENSOR

Description
Reviews (0)

Features

All DLVR series is the best airspeed sensor ArduPilot currently support

Specifications

Sensor: All sensors DLVR-L10D, Industrial temperature range
DLVR-L10D Sensor
Interface: I2C (SCL & SDA)
Sensor I2C address: 0x28
Pressure Ranges: 2500Pa
Maximum Pressure: 75kPa
Operating Temperature: -25C ~ 85C

Board Supply voltage: 4~5.5V DC
Working current: 5mA
Red LED: 3.3V power indicator
JST-GH sequence: 5V, SCL, SDA, GND
Weight: 3.5g (sensor board)

Included

1x AS-DLVR-I2C Sensor Board.
1x JST-GH-4P to JST-GH-4P 20cm silicon wire
Pitot Tube.

Wiring

5V to FC 4~5.5V
SCL to FC I2C_SCL
SDA to FC I2C_SDA

G to FC GND

Clear silicon tubing 40cm

Parameters

ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)
