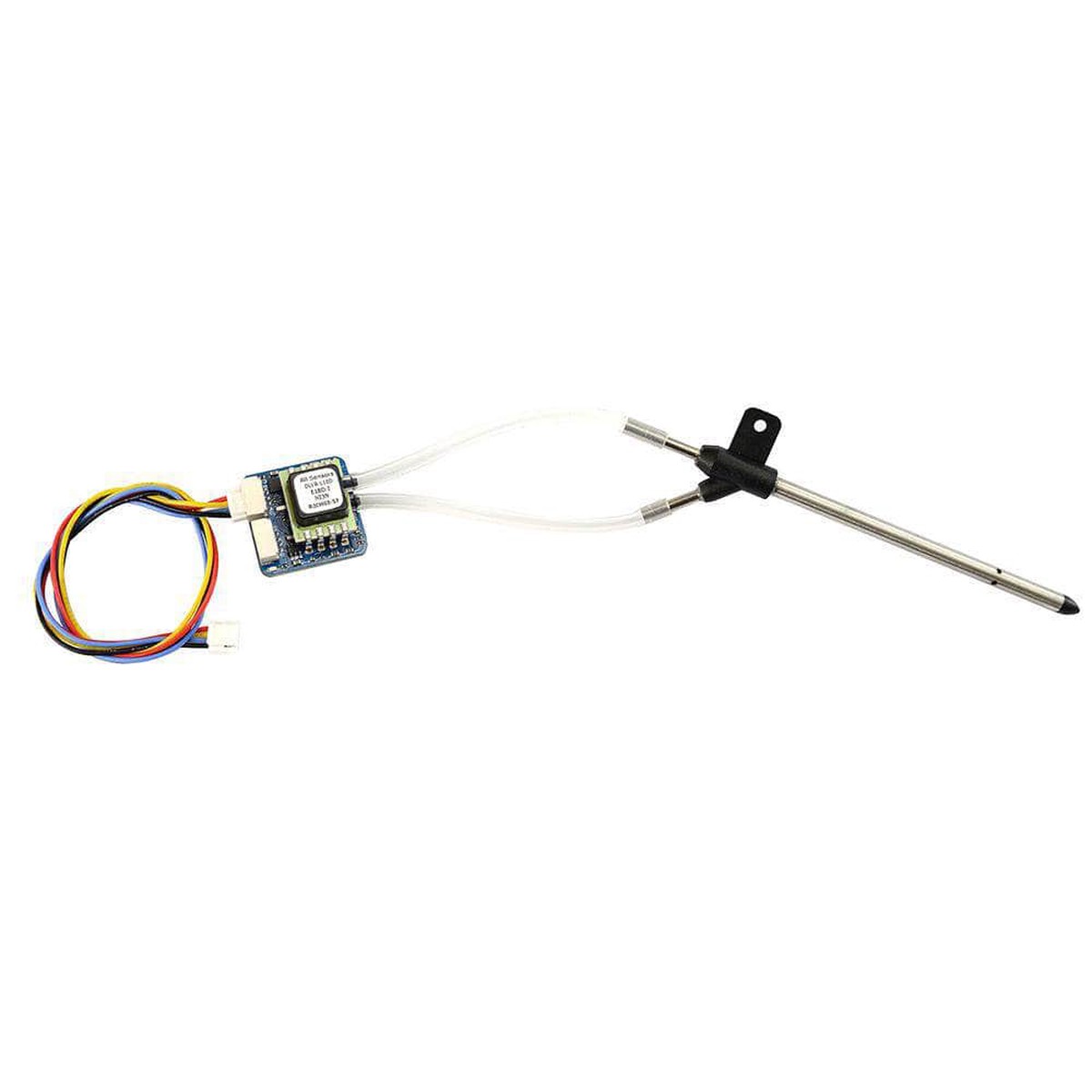

Matek Digital Airspeed Sensor ASPD-DLVR

Digital airspeed sensor from MATEK, a great addition to your Fixed Wing.

Check outall our wing flight controllersas well asthe entire Matek selection!

Features

• ArduPilot AP_Periph F405 CAN node
• All sensors DLVR-L10D, Industrial temperature range
• CAN & I2C Interface
• Typical Platforms: Fixed-Wing, QuadPlane, VTOL
• CAN JST-GH connector, UAVCAN Protocol
• I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
• UART1, Firmware update
• UART2, Spare for external GPS
• UART3, MSP Protocol (To be supported)
• CAN bootloader LED, Blue
• Fast blinking, No communication between CAN node and Flight Controllers
• Slow blinking, Communicating between CAN node and Flight Controllers
• 3.3V Power LED, Red

Specifications

• Input voltage range: 4~6V
• Power consumption: 60mA
• Operating Temperatures: -20C to 85C
• Pressure Range: 2500Pa ( 10 inH2O)
• Burst Pressure: 75kPa
• Speed Range: 250 km/h
• Size: 22mm*22mm*12.5mm
• Weight: 4g

Includes

• 1xMatek Digital Airspeed Sensor ASPD-DLVR

Wiring Diagram
