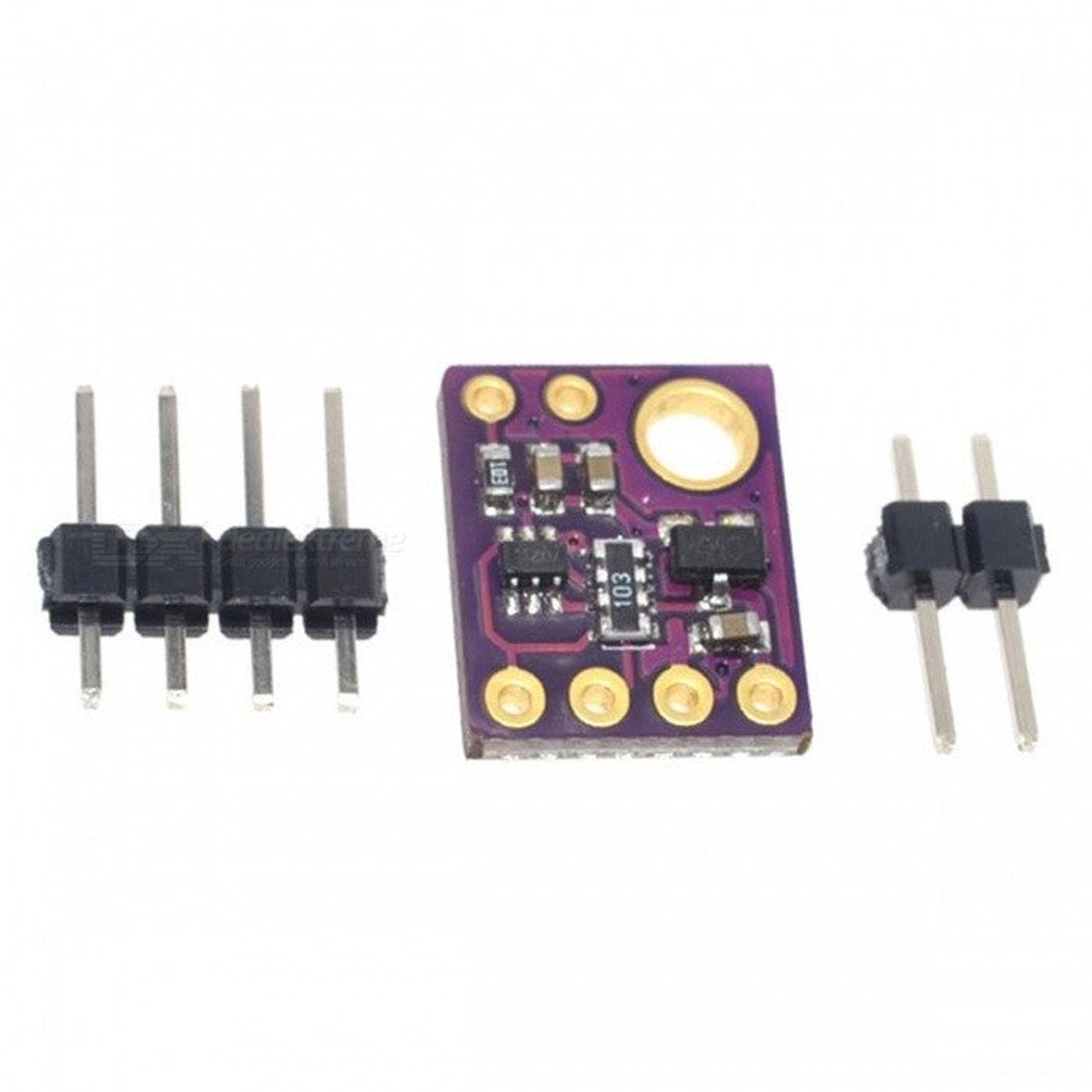

MAX44009 Ambient Light Sensor Module

The MAX44009 ambient light sensor features an IC digital output that is ideal for a number of portable applications such as smartphones, notebooks, and industrial sensors. At less than 1A operating current, it is the lowest power ambient light sensor in the industry and features an ultra-wide 22-bit dynamic range from 0.045 lux to 188,000 lux. Low-light operation allows easy operation in dark-glass applications.

The on-chip photodiodes spectral response is optimized to mimic the human eyes perception of ambient light and incorporates IR and UV blocking capability. The adaptive gain block automatically selects the correct lux range to optimize the counts/lux.

• Wide range of 0.045 Lux to 188.000 Lux
• Small, 2mm x 2mm x 0.6mm UTDFN-Opto
• VCC = 1.7 V to 3.6 V
• ICC = 0.65 an operating current
• -40 C to + 85 C Temperature range
• Device of direction of options
• 1001 010x and 1001 011x
• PCB size 🙁 L * W) 1.32 * 1.05 cm / 0.52 “* 0.41”

Specifications

Resources

Datasheet

Library

Sample Code

Tutorial
