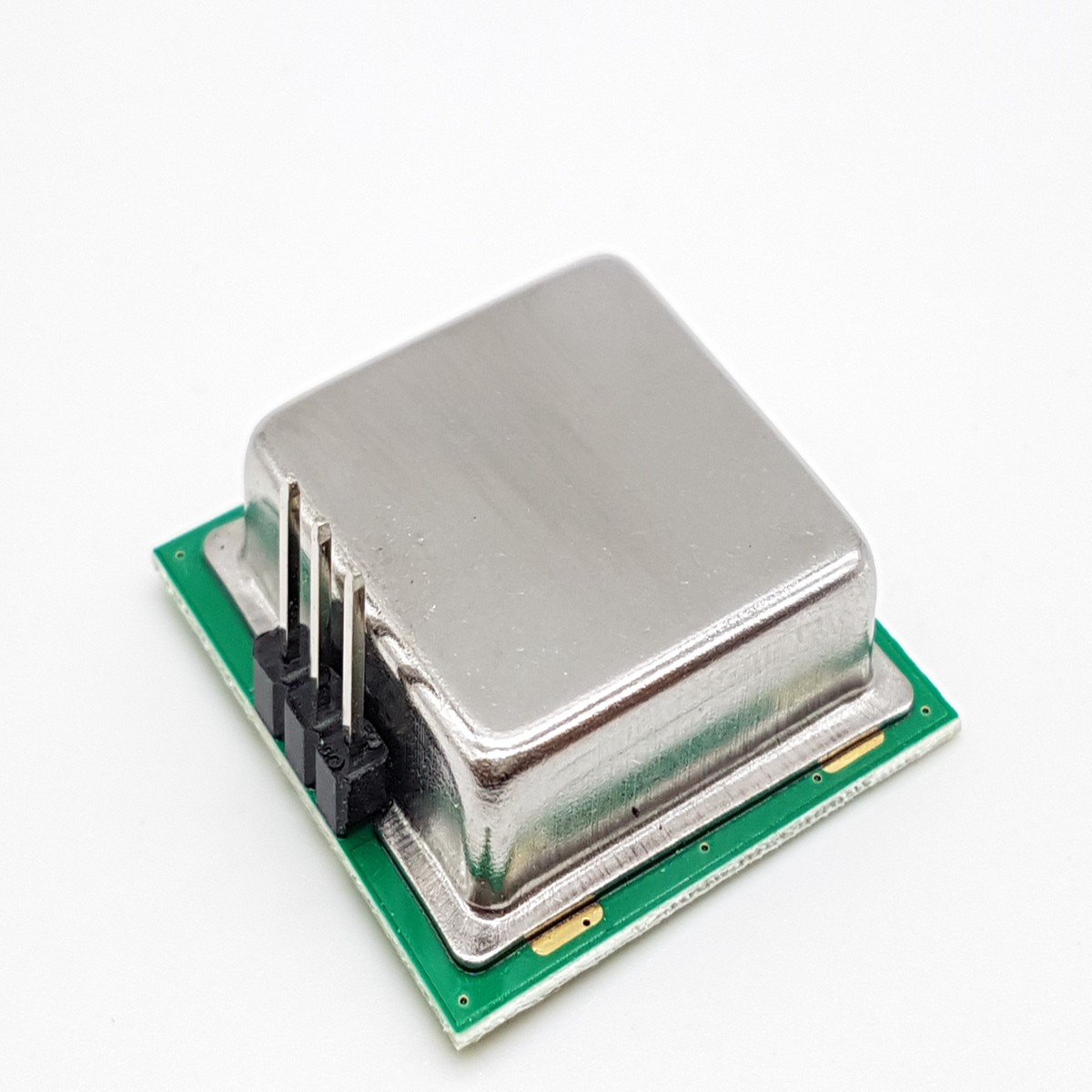

Microwave Body Radar Induction Switch Sensor

Features:

• Noncontact detection,moving object detecting
• Transmitting frequency:24GHZ,can be widely applied in business,industries,word controlling etc
• Provide various frequency range standards:-UK,-F.advanced low consumption PHEMT oscillator
• Independent transmitting and receiving route, can get the biggest gain,single channel operation
• High sensibility,high flexibility,low cost,operating distance:15m
• Not influenced by temperature,humidity,noise,air flow,dust,ray etc,adaptive to terrible environment
• Strong radio frequency interference resistance,stable performance,swift response,high sensibility
• Out put power is 5mW,does no harm to human bodies
• Long distance detection range:15m
• Small volume,easy to install
• Radar wave can penetrate through non metallic object,such as board,glass,plastics,fabric textile etc,unless there are concrete wall or metal board to obstruct
• Human beings or objects facing the sensor to move wil receive the best detection result

Notice:

• Don’t operate during the power on in case of maloperation,wrong circuit or electric shock
• Avoid installing the product in exposed place to prevent damage or affecting using longevity
• Install the product far away from magnetic field in case of maloperation
• Install the product far waay from moving conductors in case of maloperation

Parameter:

• Transmitting Frequrency: min:24GHz typ:24.125GHz max:24.25GHz
• Output Power:16dbm (tpy)
• Operating Temperature:-20–60
• Operating Current: tpy:30MA, max:40MA
• Operating Voltage: tpy:5.5V
• Pulse Width: tpy:10US
• IF Output:-300–300MV
• Appearance Size:25*25*7mm
