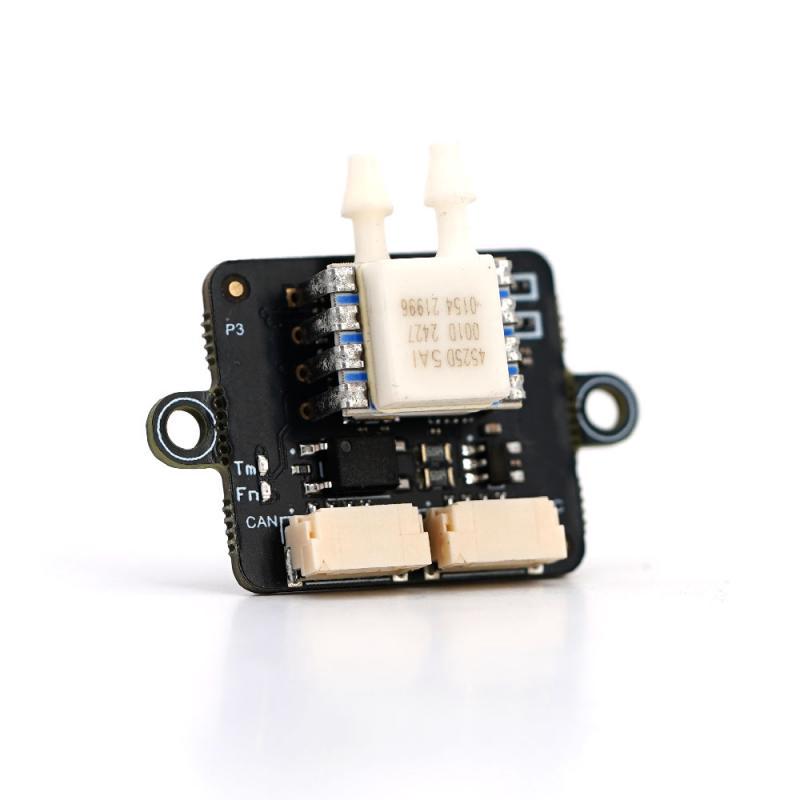

TBS DroneCAN Airspeed Sensor

If your autopilot has been guesstimating airspeed like a dodgy weather app, the TBS DroneCAN Airspeed Sensor is your upgrade path. Armed with the DLVR-L10D digital pressure sensor, STM32G473CE brain, and ArduPilot AP-Periph firmware, it delivers industrial-grade accuracy across planes, VTOLs, and other UAVs. Translation: reliable, low-drift, high-precision airspeed data your flight controller can actually trust. Because close enough doesnt cut it when youre 300m up.

Why You Want It

Because analog sensors sag harder than a 10-cycle LiPo. The DroneCAN Airspeed unit runs digital, with <1% error and stable readings across temperature swings. Its plug-and-play with PX4 or ArduPilot boards, wrapped in a rugged aluminium shell that wont complain when your landing is more arrival than touchdown.

Specifications

• CAN & I2C Interface
• CAN JST-GH connector, DroneCAN Protocol
• I2C JST-GH connector, MS4525DO I2C mode (I2C address 0x28)
• CAN status LED, Orange
• Fast blinking, No communication between CAN node and Flight Controllers
• Slow blinking, Communicating between CAN node and Flight Controllers
• 3.3V Power LED, Orange
• Input voltage range: 4~6V
• Power consumption: 60mA
• Operating Temperatures: -20C to 85C
• Pressure range6890kPa
• Airspeed range 100 m/s or 360 km/h or 223 mp/h
• Accuracy: 2.0%
• Dimensions35mm*22mm*12mm
• Weight4g

Setup

DroneCAN Mode

• Verify the following parameters are set on your autopilot via your ground station.
• CAN_P1_DRIVER = 1 (assuming its on the first CAN bus of the autopilot)
• ARSPD_TYPE = 8 (DroneCAN)

I2C Mode

• ARSPD_TYPE = 9 (DLVR-10)
• ARSPD_USE = 1 to enable using the sensor on autopilots external I2C bus

Whats in the Box*

• 1 TBS DroneCAN Airspeed Sensor Module
• 1 Pitot tube
• Silicone tubing

Disclaimer

Yes, its industrial-grade. No, that doesnt make it crash-proof. Fly responsibly.

Still Here?

If youre still reading, you probably memorise CAN bus pinouts for fun. Respect. The TBS DroneCAN Airspeed Sensor gives your PX4/ArduPilot rig sub-1% accurate airspeed data, rugged aluminium housing, and hassle-free DroneCAN integration. Add it to your cart your autopilot deserves better than close enough.
