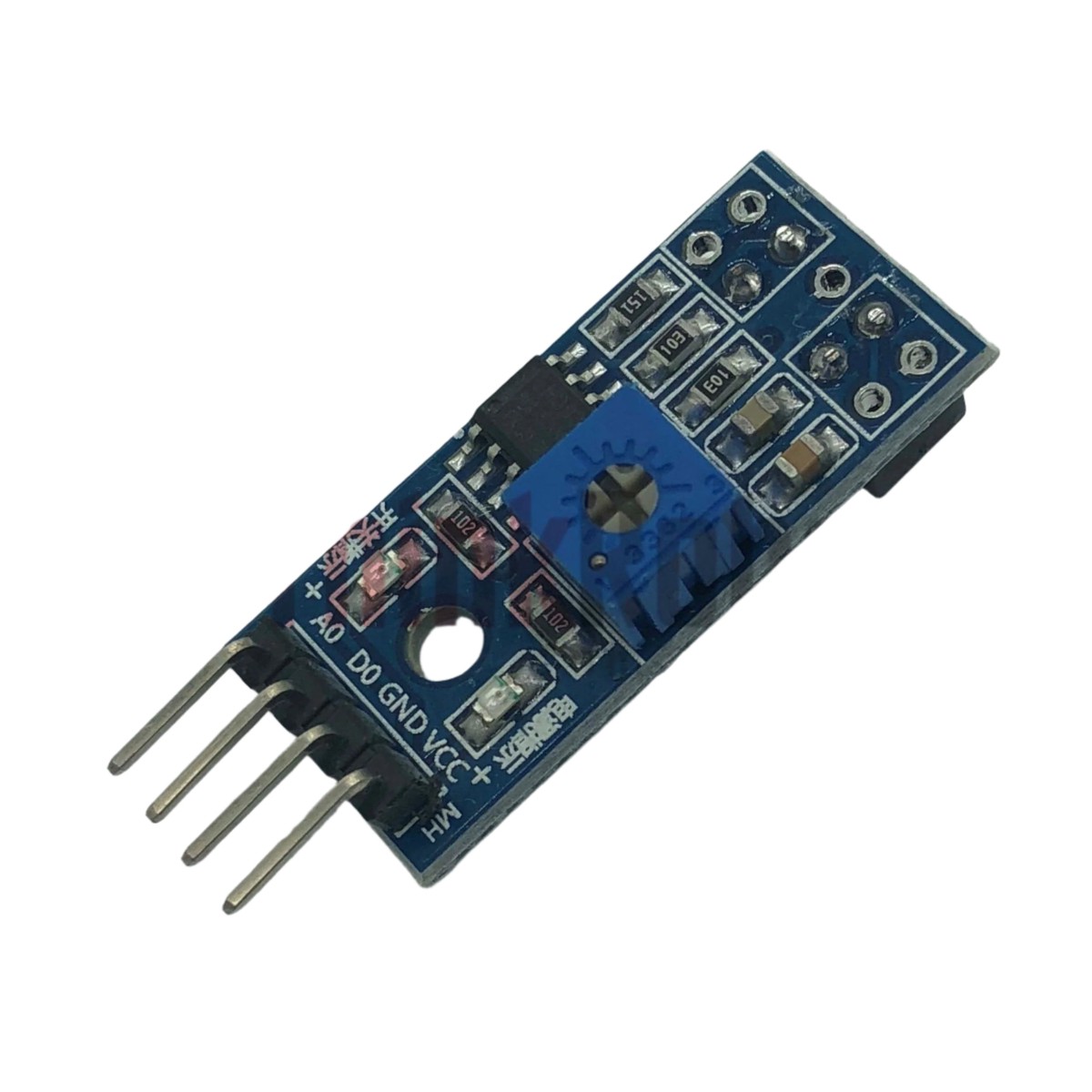

TCRT5000 Line Tracking Infrared Sensor

This IR reflective sensor utilizes a TCRT5000 to detect color and distance. It emits IR and then detects if it receives the echo. This sensor is often used in line following robots, auto data logging on utility meters, because this module can sense if a surface is white or black.

The measuring distance range from 1mm to 8mm, and the focalpoint is about 2.5mm. There is also an on-board potentiometer to adjust the sensitivity.

The infrared diode will emit the infrared continuously when the module is powered on, when the emitted infrared light has not been reflected or the strength is not big enough,the modulestaysinOFFstate, andD0 output logic stays HIGH and LED stays OFF.

• Using infrared reflective sensor TCRT5000
• Detection of reflection distance: 1mm to8mm
• Adjustable sensitivity using potentiometer
• OperatingVoltage: 3.3V – 5V
• Output: Digital
