WAGO 750-923

WAGO 750-923 USB Configuration Cable

Overview

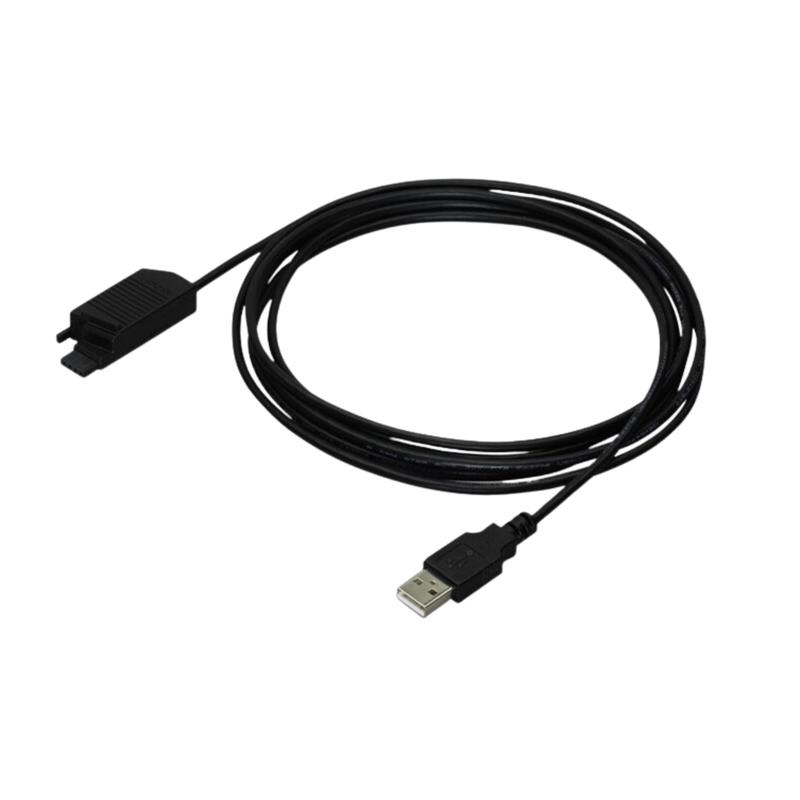

The WAGO 750-923 is a configuration cable designed to connect a PC to the service/configuration interface of WAGO controllers, bus couplers, and signal condition-modules. It uses a 4-pole male connector on the WAGO end and a USB-A plug for the PC. The cable enables device configuration, firmware updates, and diagnostics. It is built for industrial environments and complies with EMC standards.

Key Features

• USB-A plug to 4-pole male WAGO connector

• 2.5 metre length ( 8.2 ft)

• Compatible with Windows XP SP3, Windows 7, Windows 10, Windows 11

• Black sheath, durable cable build

• Weight approx. 64.8 g

• Supports device configuration / service interface of WAGO IO-System and 857 Signal Conditioners

Technical Specifications

Part Number: 750-923
Connector Type: 4-pole male (WAGO end) to USB A (PC end)
Cable Length: 2.5 m
Operating Systems Supported: Windows XP (SP3 or higher), Windows 7, Windows 10, Windows 11
Color: Black sheath
Weight: ~ 64.8 g
Operating Temperature: -25 +70 C
Protection Rating: IP20
EMC / Immunity Standards: Complies with EN 61000-4-3, EN 61000-4-6
EMC Emissions: Complies with EN 55022

Applications

• Device configuration and commissioning of WAGO controllers, bus couplers, and signal conditioners

• Firmware updating of compatible WAGO modules

• Diagnostic access for system maintenance

• Use in control cabinets and field service tasks

Why Choose the WAGO 750-923

• Reliable cable connection for configuration and service interfaces

• Adequate length (2.5 m) for working access within cabinets

• Broad operating temperature and EMC rating for industrial settings

• Compatible with multiple Windows versions

Order Now

The WAGO 750-923 configuration cable is part of the IO-System accessories line and is available for purchase. Ships worldwide.
