Zlob Modular Diode Chaos Eurorack Random CVTrigger Module

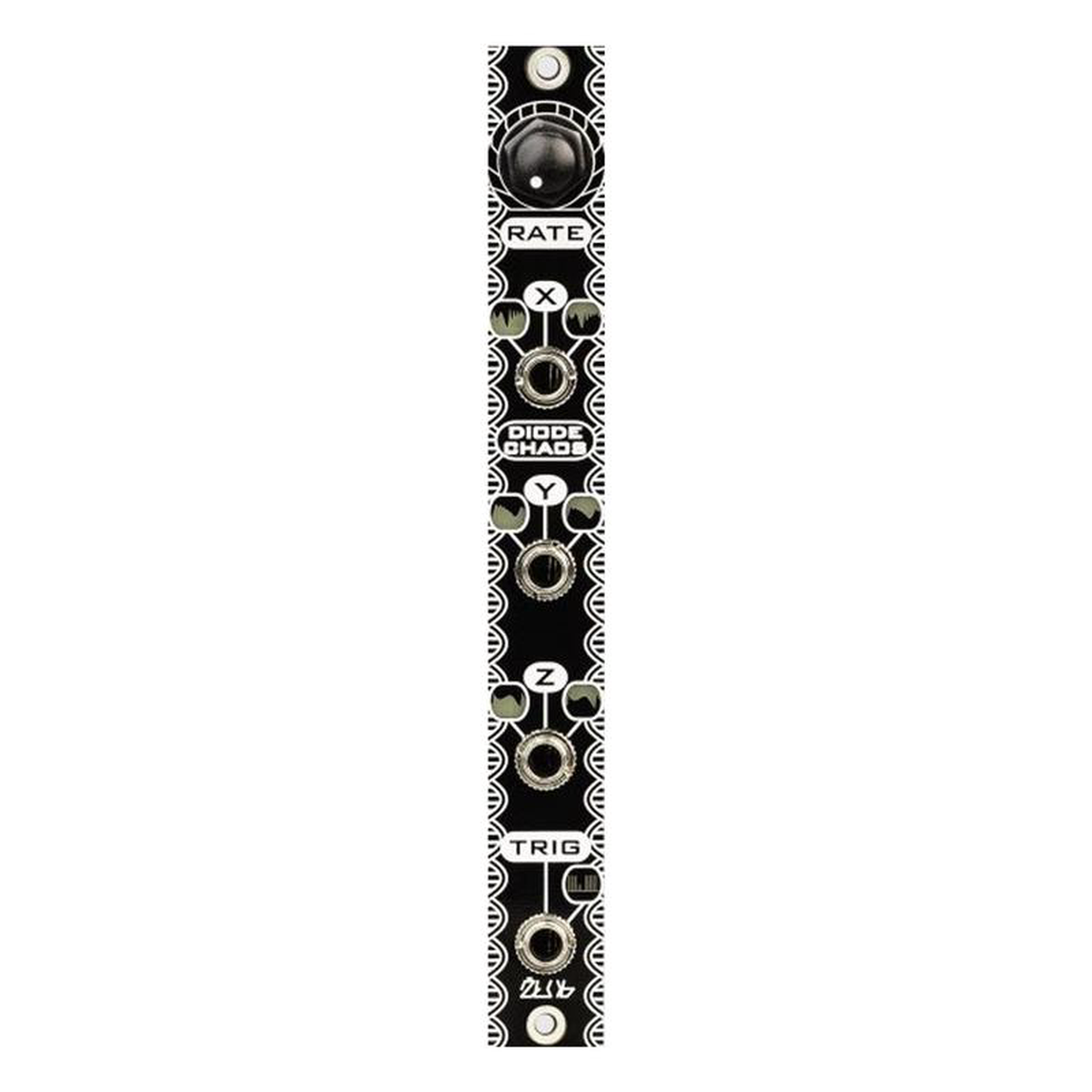

Analog chaotic low frequency voltage generator Diode Chaos is a 3hp analog chaotic low frequency voltage generator. It is a unique module because it has never existed as an electronic music instrument until now. The module is based on a circuit from a paper called A simple chaotic circuit with a light-emitting diode by Volos, Wang, Jafari, and Kapitaniak. Diode Chaos produces 3 phases of interrelated morphing voltages including a chaotic trigger out. The range is around 30 seconds a cycle up to audio rate. The frequency is controlled by the RATE knob. Each output exhibits different behavior at different rate settings. X, Y, and Z outs like to stay in the 4Vpp range although at different RATE settings the outs can reach 10Vpp. The TRIG out chaotically releases 0-10v triggers although sometimes it will spit out smaller voltage peaks. LED soldermask windows provide constant display of positive and negative voltage crossings. Differences between chaos and random; some quoted and summarized material from Ian Fritzs site: Chaos is highly irregular, but still contained within a finite region (the strange attractor) Chaos occurs in 3 dimensions Chaos needs a non-linear element (with Diode Chaos the nonlinear element is a red LED, and the chaos is directly visible and usable at the TRIG out)
